Overspeed

The Overspeed report displays data from speed segments. In order to view the Overspeed data, you must first set up the segments in the Speed module.

Click the Speed module in the left frame then click Create Speed Segment.

Select the cameras for the speed segment. Click Next Step.

Set the segment details. This will auto-populate from any previous lane calibrations. You may also change the parameters, if desired.

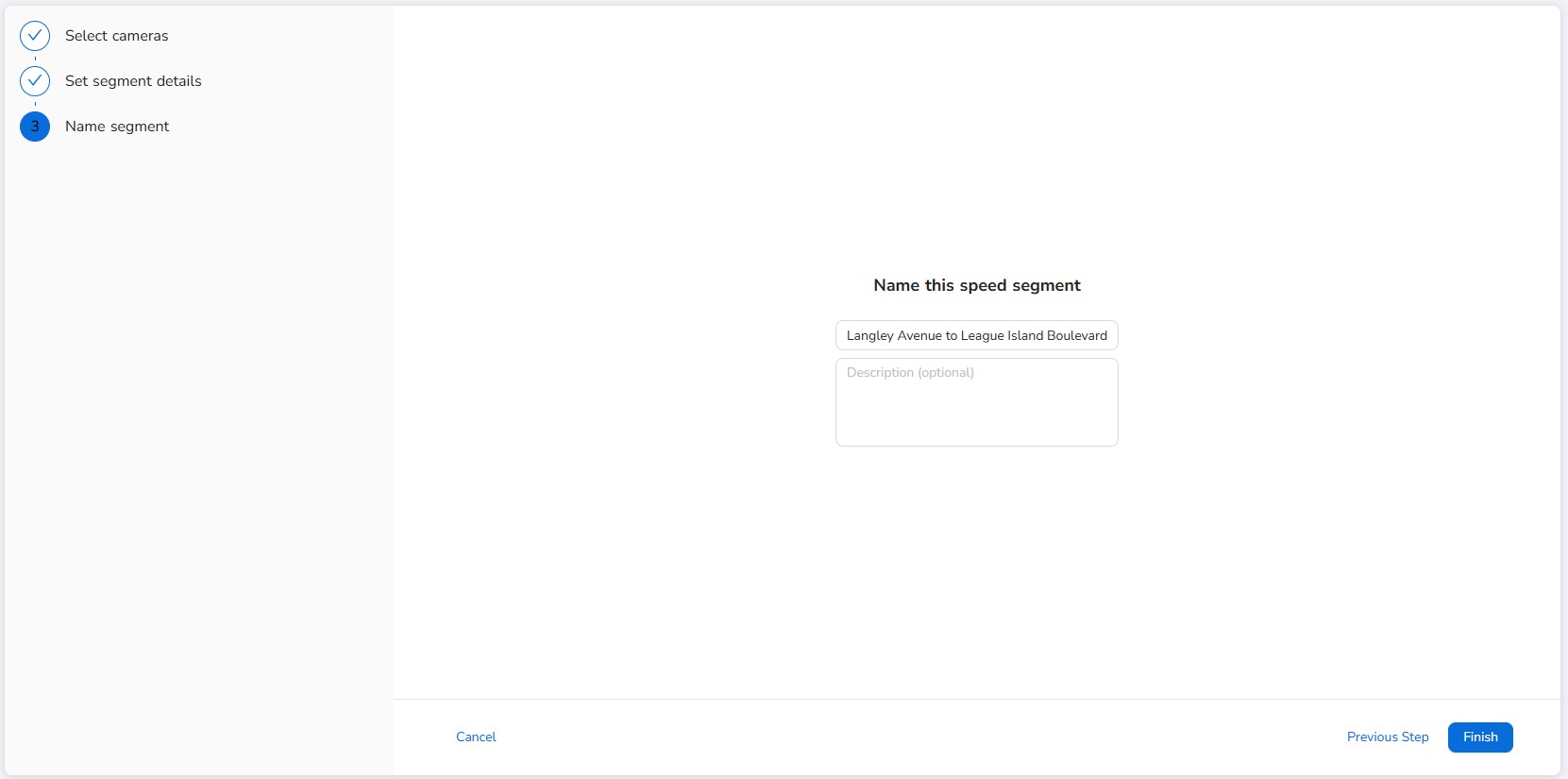

Then enter the name of the segment and click Finish.

Go to Reports>Create New Report then select Overspeed.

Select the segment that was just created.

Select the date range.

Select the days of the week.

Enter the report name, then click Finish.

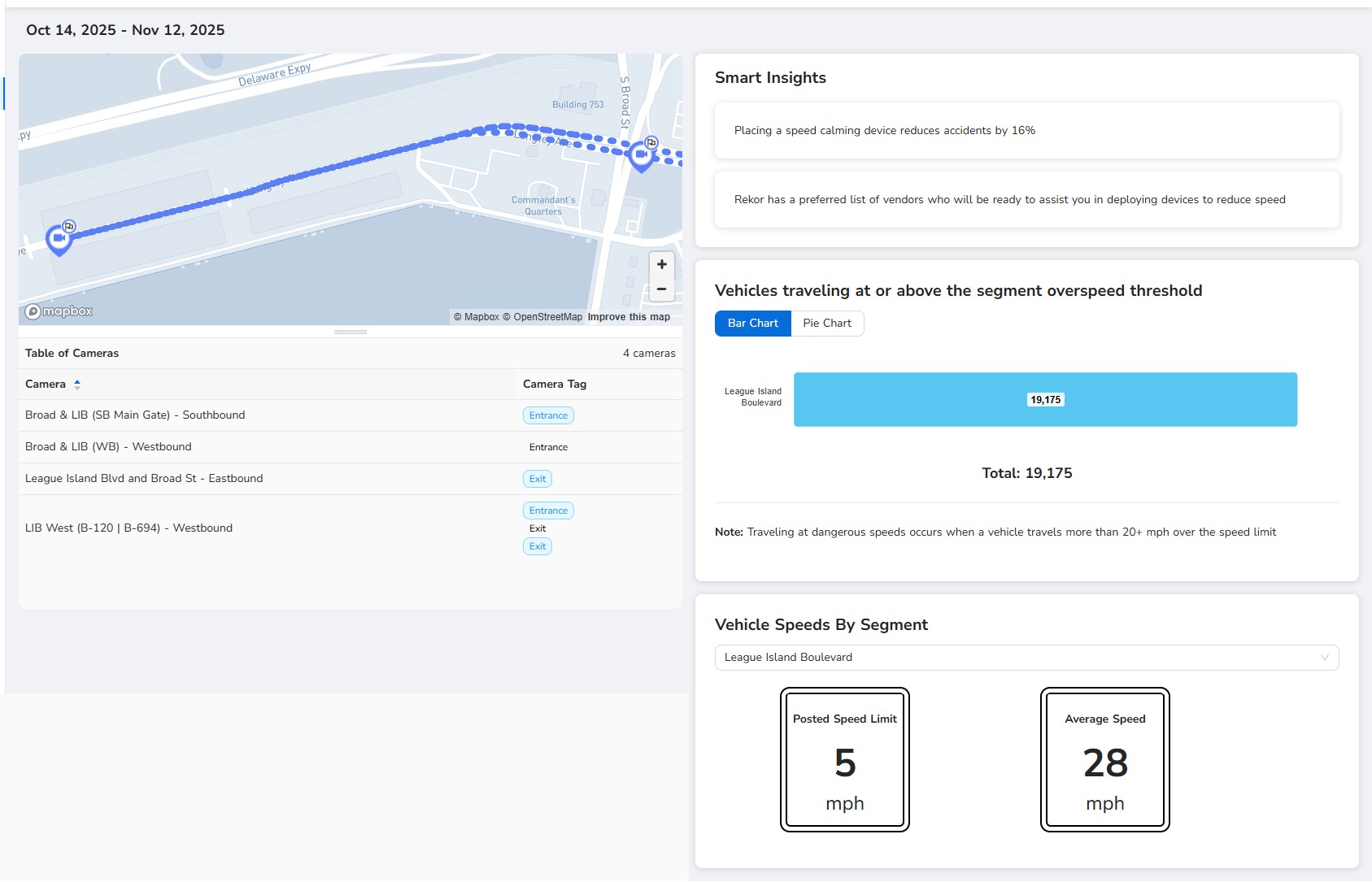

The Overspeed Report displays a map of the speed segment, the amount of vehicles traveling over the speed limit, and a visual of the speed limit and average speed.
