# System Settings

When first installing the Edge Max camera, the time and network settings should be configured.

Go to System in the left frame.

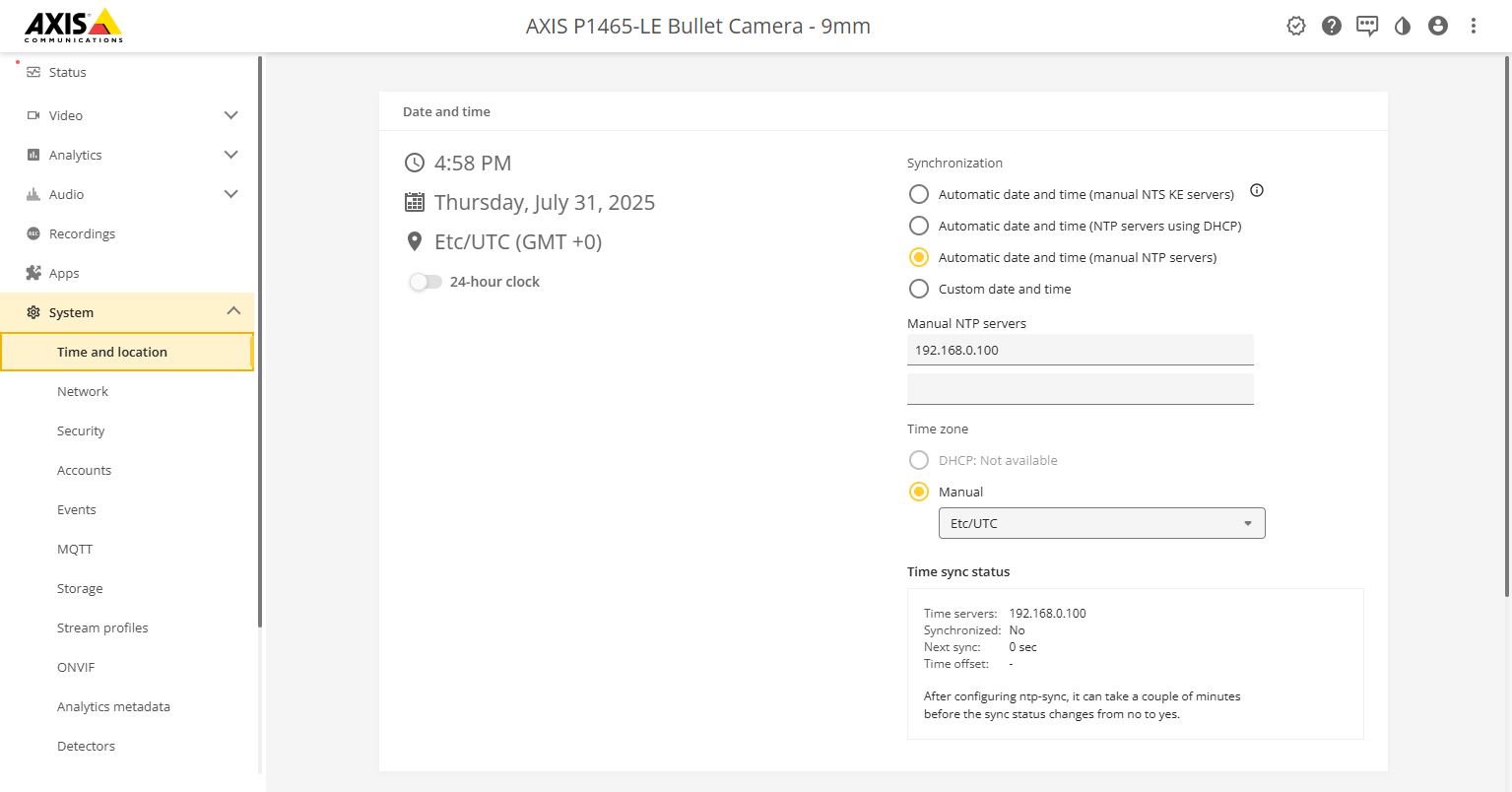

### Time

1\.      Synchronization: Select Automatic date and time (manual NTP servers).

2\.      Manual NTP Servers: Enter 192.168.0.100.

3\.      Time Zone: Select Etc/UTC.

The camera will automatically save these settings.

<figure><img src="https://914362148-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FExr5RmSsIypa7hIm1B9c%2Fuploads%2Fro9J3C5fWMaKt9il1txN%2FAxis%20System%20Time.JPG?alt=media&#x26;token=2f44fd3a-3a40-4f98-99e0-4647853e49e0" alt=""><figcaption></figcaption></figure>

### Network

Go to Network in the left frame.

Under IPv4:

1\.      Enter IP address: 192.168.0.91.

2\.      Enter Subnet mask: 255.255.255.0.

3\.      Enter Router: 192.168.0.100.

4\.      Click Save.

<figure><img src="https://914362148-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FExr5RmSsIypa7hIm1B9c%2Fuploads%2F0DlDVna3qBxP9EIEcR2O%2FAxis%20System%20Network.JPG?alt=media&#x26;token=520ef31f-7d3a-4811-92dc-9615933f7e16" alt=""><figcaption></figcaption></figure>

### Status

The Status screen displays the current Device info, Time sync status, Security, Connected clients, and the Ongoing recordings. All of these settings are configurable under System.

<figure><img src="https://914362148-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FExr5RmSsIypa7hIm1B9c%2Fuploads%2FomTOrYYJJpTF2UCVTiyw%2FAxis%20status.JPG?alt=media&#x26;token=ddf76df6-db39-4f9b-bc2c-75d5d16f1413" alt=""><figcaption></figcaption></figure>
